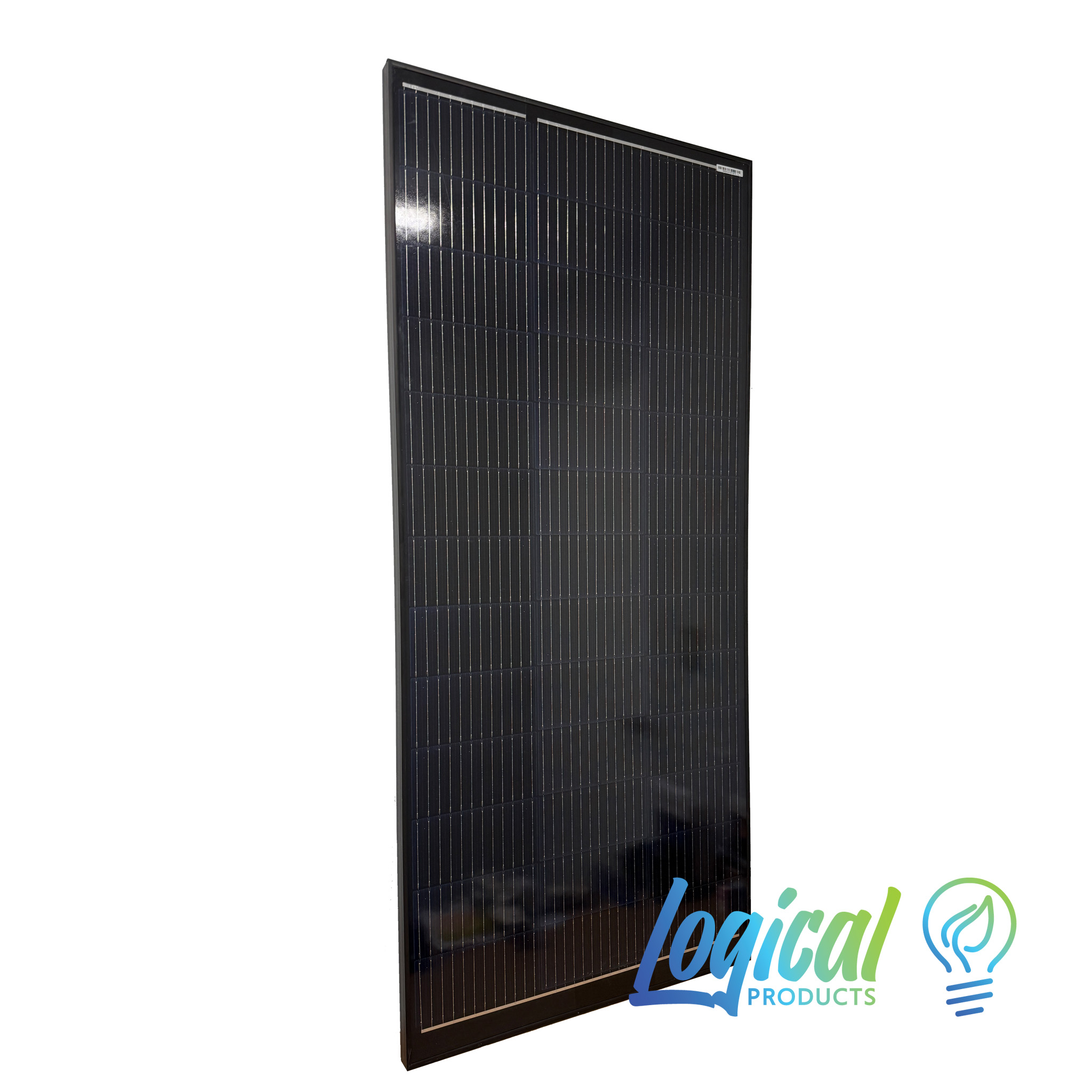

200W Full Black Mono Solar Panel NZ – Logical Energy SuperNova 12V High Efficiency Module
Peak Power (Pmax): 200W · Vmp: 20.3V · Imp: 9.90A · Voc: 25.1V · Isc: 10.5A · Dimensions: 1480 × 670 × 30mm · Weight: 9.0kg · Warranty: 10-year product / 25-year output
Looking for a reliable 200W solar panel in NZ for caravans, campervans, boats, sheds, or off-grid systems? The Logical Energy SuperNova 200W Mono Solar Panel delivers dependable 12V performance, rugged construction, and excellent low-light output — ideal for New Zealand conditions.
Designed as a nominal 12V DC module, this panel suits battery charging systems using MPPT or PWM solar controllers.

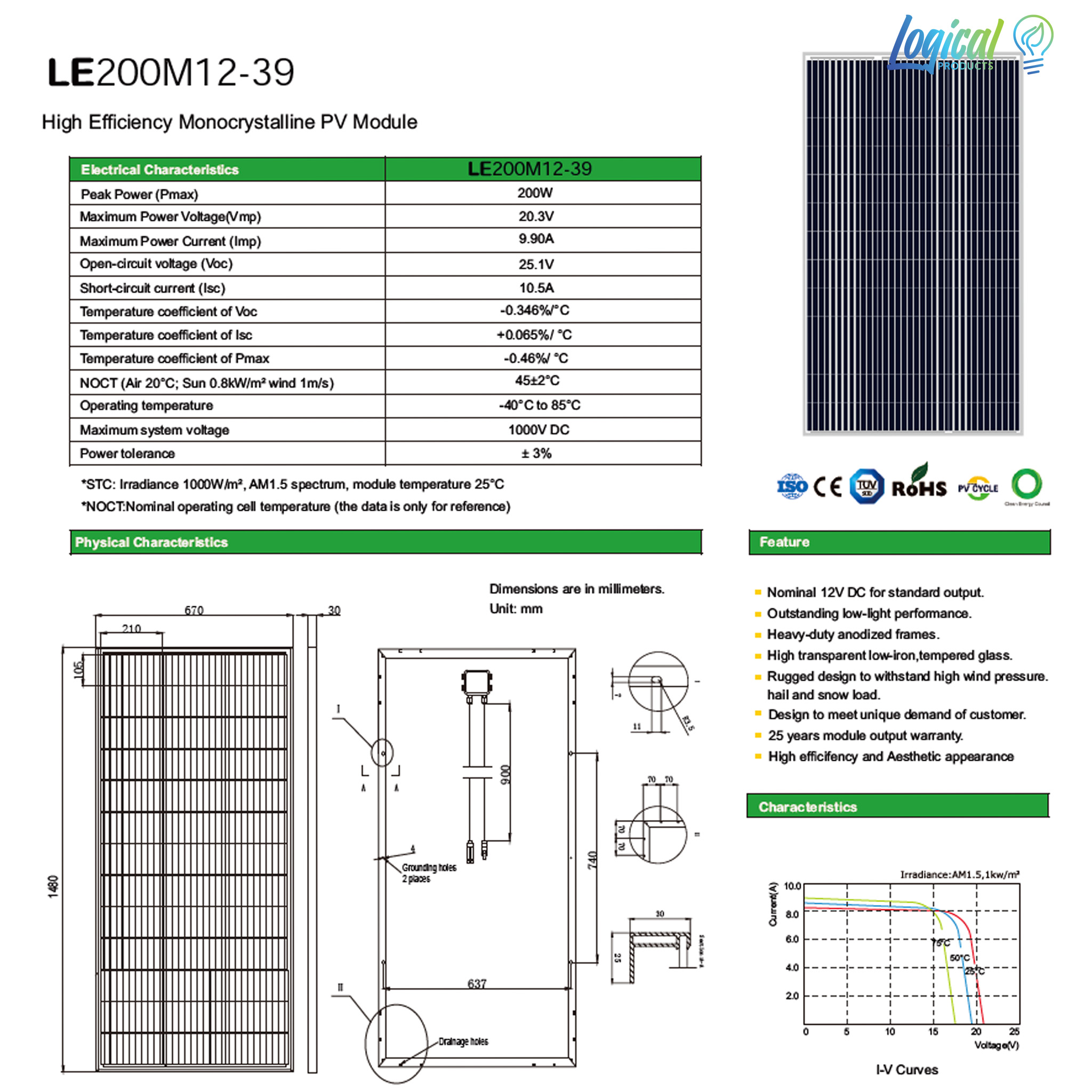

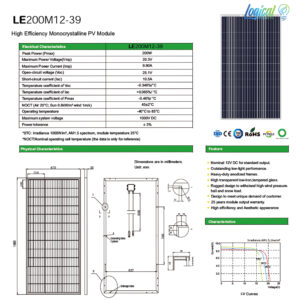

Electrical Specifications
| Specification | Rating |
|---|---|
| Peak Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 20.3V |
| Maximum Power Current (Imp) | 9.90A |
| Open Circuit Voltage (Voc) | 25.1V |
| Short Circuit Current (Isc) | 10.5A |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ±3% |
With a Vmp of 20.3V and Imp of 9.90A, this panel is optimised for charging 12V lithium (LiFePO4) batteries, 12V AGM and deep cycle batteries, campervan and caravan systems, and small cabin and shed installations. It pairs ideally with 20A or 30A MPPT solar charge controllers, 12V dual battery systems, and portable solar kits.
Physical Specifications
| Specification | Rating |
|---|---|
| Dimensions | 1480 × 670 × 30mm |
| Weight | 9.0kg |
| Cell Type | Monocrystalline silicon |
| Cell Configuration | 39 cells (3×13 layout) |
Lightweight enough for roof racks and mobile installations, yet robust enough for permanent mounting.
Why Choose the Logical Energy 200W Solar Panel?
Strong, consistent output — 200W peak power (Pmax), ±3% power tolerance, stable temperature performance, and excellent low-light generation for cloudy NZ days.
Built tough for NZ conditions — heavy-duty anodised aluminium frame, high-transparency low-iron tempered glass, and a rugged design that withstands wind pressure, hail, and snow loads. Operating temperature range from -40°C to +85°C. Perfect for coastal installs, rural properties, and mobile setups.
Warranty & Peace of Mind
- 10-Year Limited Product Warranty
- 25-Year Limited Power Output Warranty (80% output at 25 years)
Logical Energy panels are built for long service life and dependable performance.
Buy 200W Solar Panels in NZ
At Logical Energy, we supply premium solar panels in New Zealand at competitive pricing with local support and fast dispatch.
Whether you’re building a campervan power system, upgrading your off-grid cabin, or expanding a small residential solar setup, the SuperNova 200W Mono Solar Panel is a reliable and efficient choice.
| Weight | 10 kg |
|---|---|
| Dimensions | 148 × 68 × 5 cm |
Be the first to review “NZ Logical SuperNova 200W Full Black Mono solar panel”
Related products

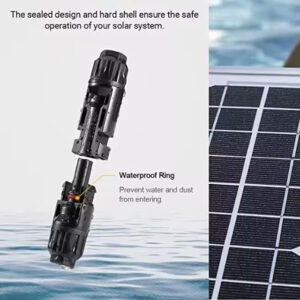

Cable and Connectors
